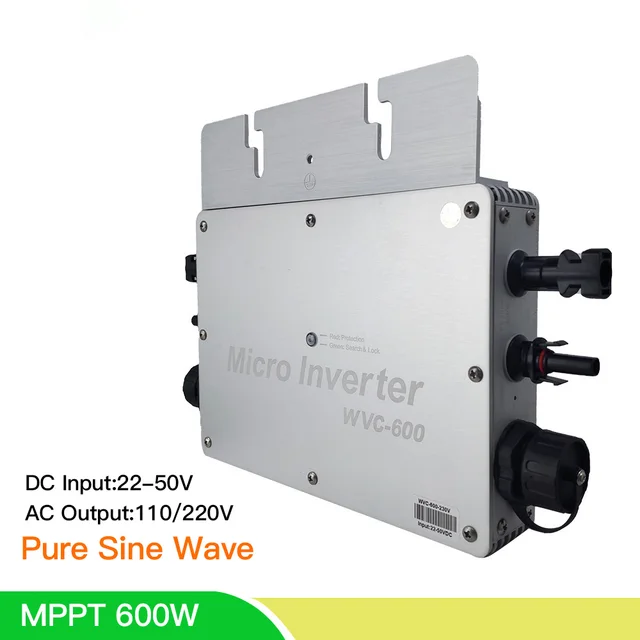

WVC600 Micro Solar Inverter MPPT Pure Sine Wave 3 Phase Grid Tie Inverter Board Input 22-50V Out 11



US $89.25Original Price : US $127.50 (30%)

Special Offer WVC600 Micro Solar Inverter MPPT Pure Sine Wave 3 Phase Grid Tie Inverter Board Input 22-50V Out 11 with Free Worldwide Shipping!

 4.89

Buy on AliExpress

Related Products :

700W Micro Solar Inverter Single/Three Phase MPPT On Grid Tie Inverter Pure Sine Wave 22-50VDC to 110/220VAC for 2*350W Panel

High Quality 600W Solar inverter MPPT Micro Power Grid Tie Inverter 24/36V/48V DC 110/220V Pure Sine Wave Inversor for Home

1400W MPPT Micro Solar Inversor On Grid Tie Home Inverter Pure Sine Wave 24/36/48VDC 110/220V 50/60HZ For 4*350W Solar Panel

700W MPPT Solar Inversor Pure Sine Wave On Grid Tie Power Inverter 22-50VDC to 110/220V Output Voltage Single Three Phrase

Product description

[4000764949079]

?High performance maximum power point tracking (MPPT)

?Reverse power transmission

?Input /output is fully isolated to protect the electrical safety

?Multiple parallel stacking
?Digital control system
?Simplify maintenance (user serviceable)
?Operation and maintenance costs low
?Flexible installation
Introduce of WVC600
WVC600Micro Inverterusing IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
22-50VDC input voltage range is suitable for 24V(48cells),30V (60 cells) or 36V (72 cells) solar panels.















Input Data


















WVC600-120VAC/230VAC






















Recommended input power


















500-600Watt






















Recommend the use of PV modules


















2*300W/Vmp>34V/Voc<50V






















Maximum input DC voltage


















50V






















Peak power tracking voltage


















25-40V






















Operating Voltage Range


















17-50V






















Min / Max start voltage


















22-50V






















Maximum DC short current


















40A






















Maximum Input Current


















25A






















Output Data


















@120VAC


















@230VAC






















Peak power output


















600Watt


















600Watt






















Rated output power


















550Watt


















550Watt






















Rated output current


















4.58A


















2.3A






















Rated voltage range


















80-160VAC


















180-260VAC






















Rated frequency range


















57-62.5Hz


















47-52.5Hz






















Power factor


















>96%


















>96%






















Maximum units per branch circuit


















6PCS(Single-phase)


















12PCS(Single-phase)






















Output Efficiency


















@120VAC


















@230VAC






















Static MPPT efficiency


















99.5%


















99.5%






















Maximum output efficiency


















92 %


















92%






















Night time power consumption


















<50mW Max


















<70mW Max






















THD


















<5%


















<5%






















Exterior






















Ambient temperature


















-40? to +60?






















Operating temperature range (inverter inside)


















-40? to +82?






















Dimensions (WxHxD)


















289mm×200mm×38mm






















Weight


















1.53kg






















CertificationCE













CE Certification


















Cooling


















Self-cooling
