US $25.46Original Price : US $38.00 (33%)

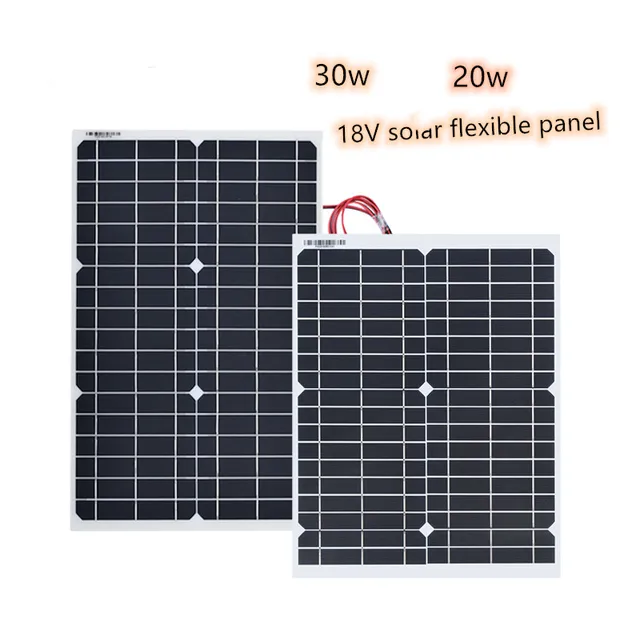

Limited Price 30W 20w 18V Flexible Solar Panel Panels Solar Cells Cell Module DC for Car Yacht Led Light RV 12v B with FREE Shipping Worldwide!
4.58
Related Products :
30W flexible Solar Panel 5V USB 3A Portable Monocrystalline Solar charger Cell for Car Yacht RV Charging Outdoor Emergency Light
50w flexible solar panel Monocrystalline silicon cell for 12V Battery charger system 100W 150W 200W Panneau solaire
5V 5W Portable Solar Charging Panel Lightweight Solar Power USB Charger for Outdoor Mobile Smart Phone Solar Power Supply
XINPUGUANG 100w 16V Solar Panel flexible 200W Solar System Monoctrystalline 12v 24V Battery/yacht/RV/car/boat RV Solar Cells
Product description
[4000033040676]#Packing list
20W solar panel :1*20W solar panel+1* DC +alligator clip cable+1*DC+Cigarette lighter cable30W solar panel;1*30W solar panel
# 30 W Solar Panel
Maximum power(Pmax) :30W Output tolerance : + 3% Maximum system voltage :700V DC Open circuit voltage(Voc): 21.6V Short circuit current(Isc) : 1.82A Maximum power voltage(Vmp): 18V Maximum power current(Imp) :1.66A Cell efficiency : 19.5% Operating temperature(NOCT): 452? Temperature range : -20?~+80? Number of cells : 36pcs Weight : 0.6 KG Size :510*330*3mm Standard Test Conditions : lrradiance 1000w/m2,Temperature 25?, AM=1.5
#20W Solar Panel
Maximum power(Pmax) :20W Output tolerance : + 3% Maximum system voltage :700V DC Open circuit voltage(Voc) :21.6V Short circuit current(Isc) :1.22A Maximum power voltage(Vmp) : 18V Maximum power current(Imp) : 1.11A Cell Efficiency :19.5% Operating temperature(NOCT): 452? Temperature range : -20?~+80? Number of cells :36pcs Weight : 0.4 KG Size : 420*330*3 mm Standard Test Conditions : lrradiance 1000w/m2,Temperature 25?,AM=1.5
#Features
1.semi flexible: can be bending angle up to 20 degrees 2.Durable with TPT backsheet, no glass 3.Light weight,easy carrying,easy shipment,easy installation 4.Thin : the thickness is only 3mm, easy joint to your yacht or RV roof , boat etc 5.Can be stepped on with soft soled shoses 6.make with high efficiency Monocrystalline silicon and solar panel up to 23% 7.more compack size generate 30% high power than market solar panel , steady perfect generate power performance , 8.Rounding corners to prevent from being scratched 9.Hardening process surface prevent from scratched 10.easy installed with clue , adhesive, screw,and also grommet at corner is easy for installation 11.wide use applications:Golf car,Yacht, boat,caravan, electric car,travel tourism car, patrol car, roof,camping,roof power generations,tent,portable bag , backpacks , portable generator kits etc. 12..charge for 12v battery,Solve the problem that the car can't start due to lack of power.
#Remark
1. Normally we use standard black colour base board, but the colour might be tiny different because of different producing batch. 2. To achieve a certain parameter, the arrangement of the solar cell silicon wafers might be with tiny difference, but the specification is the same as described. 3. The solar cell panel will be covered by PE film, some may with air bubble under the film, it will not effect the performance, you can remove the film, just like the film on the cellphone panel. 4. The colour of silicon solar cell is blue or black. 5. As solar panel, the sunlight strength will effect the performance of the solar cell, please use it in good sunlight.
