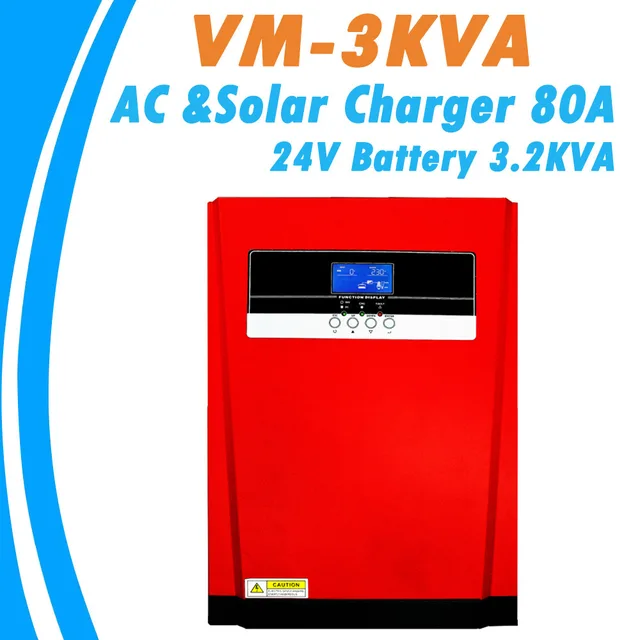

3200W Pure Sine Wave Solar Hybrid Inverter MPPT 80A Solar Panel Charger and AC Charger All in One for Max 4000W 500V Solar Input
Battery Voltage:24Vdc(Not necessary,Generate power from PV directly to supply load ,even without battery)
AC Charger Input :230VAC 80A
Solar Charger Input:4000W 500V MPPT
Inverter:3200W Pure Sine Wave 230VAC 50Hz/60Hz
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications
Feature:
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

Parameter:









Mode Name









VM-3KVA









VM-5KVA













Rated Power









3200VA/3200W









5000VA/5000W













INPUT













Voltage









230VAC













Selectable Voltage Range









170-280 VAC (For Personal Computers)













90-280 VAC(For Home Appliances)













Frequency Range









50Hz/60Hz(Auto sensing)













OUTPUT













AC Voltage Regulation(Batt mode)









230VAC plusmn 5%













Surge Power









6400VA









10000VA













Efficiency(Peak)PV to INV









97%













Efficiency(Peak)Battery to INV









94%













Transfer Time









10 ms(For Personal Computers);20 ms(For Home Appliance)













Waveform









Pure sine wave













BATTERY@AC CHARGER













Battery Voltage









24VDC









48VDC













Float Charging Voltage









27VDC









54VDC













Ovrecharge Protection









33VDC









63VDC













Maximum Charge Current









80A









60A













SOLAR CHARGER













Maximum PV Array Power









4000W









5000W













MPPT Range@Operating Voltage









120~450VDC













Maximum PV Array Open Circuit Voltage









500VDC













Maximum Charging Current









80A













Maximum Efficiency









98%













PHYSICAL













Dimension, D x W x H (mm)









100x300x440













Net Weight









9









10













Communication Interface









USB/RS232/WIFI













OPERATING ENVIRONMENT













Humidity









5% to 95% Relative Humidity (Non-condensing)













Operating Temperature









-10degC to 50degC













Storage Temperature









-15degC to 60degC
