Product description

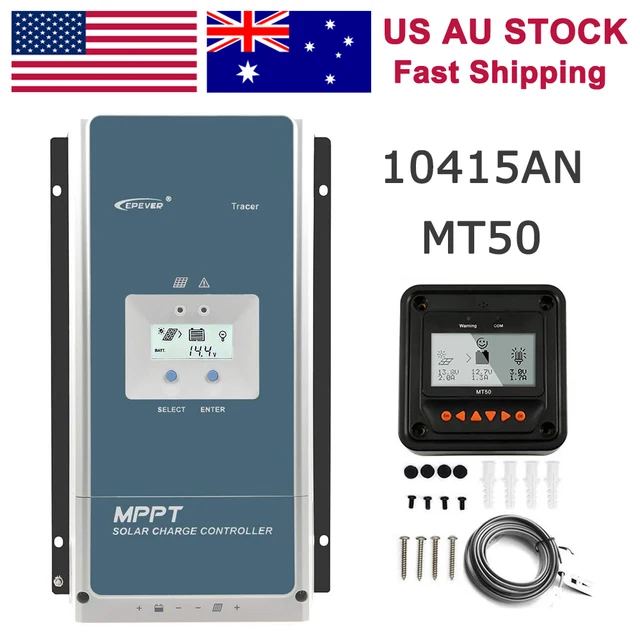

[33038001881]EPEVER 100A MPPT Solar Charge Controller 48V 36V 24V 12V Backlight LCD PV 150V Solar Panel Input Regulator Tracer 10415AN
Tracer10415AN:Max. PV open circuit voltage is150V
Features
?Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%,Accurately recognizing and tracking of multiple power point. DC/DC transfer efficiency is up to 98.6%?, full load efficiency is up to 98%?
?12V/24V/36V/48V automatically identifying system voltage.Auto control system to limit the charging power & current go over the rated value.Common NEGATIVE Ground and Troubleshooting function(fault LED indicator).
?Solar controller mppt 60a with high quality & low failure rate components of ST and Infineon and Battery temperature compensation function to ensure the controller’s life.Real-time energy recording and statistical.
?100A mppt controller Fit 4 charging options: Sealed, Gel, Flooded and User(couldn’t set Lithium).4 type load Timer:ON/OFF mode,PV&Time control mode,PV voltage control mode,Dual Time control mode.
?RS-485 communication bus interface is available for remote meter/PC controller and wifi box(B07KT4Y3Y7) to meet various communication requirements in different situations.
Specifications
Item
Tracer10415AN
Tracer10420AN
Nominal System Voltage
12/24/36/48VDC Auto
Battery Input Voltage Range
8V~68V
Battery Type
Sealed(Default)/Gel/Flooded/User
Battery fuse
80A/58V
Rated charge current
1250W/12V 2500W/24V 3750W/36V 5000W/48V
Max. PV open circuit voltage
150V
200V
MPP Voltage Range
(Battery Voltage +2V)~108V
(Battery Voltage +2V)~144V
Tracking efficiency
≥99.5%
Max. conversion efficiency
98.3%
Full load efficiency
98.0%
97.6%
Temperature compensate coefficient
-3mV/°C/2V(Default)
Self-consumption
98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding
Common negative grounding
Relay
Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface
RS485(RJ45)
LCD backlight time
Default:60S,Range:0~999S(0S:the backlight is ON all the time)
Ambient temperature range
-25°C~+60°C(Derate above 45°C)
LCD temperature range
-20°C~+70°C
Storage temperature range
-30°C~+85°C
Relative humidity range
5% to 95% (N.C.)
Enclosure
IP20
Pollution degree
PD2
Dimension
394×242×143mm
Mounting dimension
300×230mm
Mounting hole size
Φ7
Terminal
2AWG/35mm 2
Recommended cable
2AWG/35mm 2
Safety
EN/IEC62109-1
EMC
EN61000-6-3/EN61000-6-1
FCC
47 CFR Part 15, Subpart B
ROHS
IEC62321-3-1
Package Including
1X 100A mppt charge controller 10415AN
1X English User Manual
1XMT50 Optional
Connection Diagram
Connect One Controller
Multiple Controllers
?
