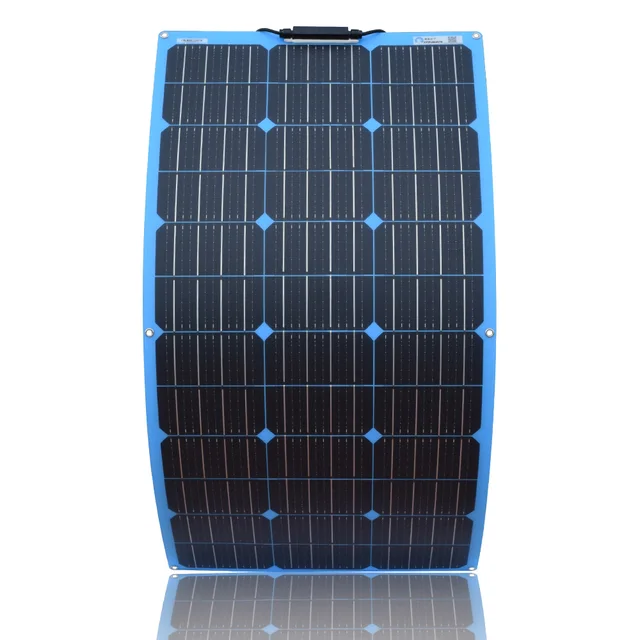

XINPUGUANG 18V 100W Solar Panel Flexible Plate cell 100 watt 200W 300W 500W 800w 1000w 12v 24v 36v



US $98.63Original Price : US $136.98 (28%)

Discount Price XINPUGUANG 18V 100W Solar Panel Flexible Plate cell 100 watt 200W 300W 500W 800w 1000w 12v 24v 36v with FREE Shipping Worldwide!

 4.63

Buy on AliExpress

Related Products :

Xinpuguang Brand 100 W flexible solar panel kit 100 watt for Home,Yacht, RV,Caravan, Cabin, Boat and 12v Battery Charger

XINPUGUAGN 18V 100w photovoltaic panel Solar module kit for 12V battery 200W solar panel system

XINPUGUANG 1pcs~ 5pcs 18v 120W Black Flexible Solar Panel 18V/36v 240w 48V/18V 360W 12V/24V 480W 600W

New Flexible Solar Panel 100W 18V Kit PERC Cell Real 100% 100 watt for 12v battery RV/Boat/Home/Camping/Car 12V Battery Charger

Product description

[4000179509852]

XINPUGUANG 18V 100W SOLAR PANEL FLEXIBLE Pate cell



Maximum power(Pmax) 100W



Output tolerance ± 3%



Maximum system voltage 700V DC



Open circuit voltage(Voc) 21.6V



Short circuit current(Isc) 6.11 A



Maximum power voltage(Vmp) 18V



Maximum power current(Imp) 5.55A



Cell efficiency 21%



Operating temperature(NOCT) 45±2?



Temperature range -40?~+80?



Number of cells 36pcs



Weight 1800g



Size 1030*525*3 mm



Back panel color blue



Standard Test Conditions : lrradiance 1000w/m2,Temperature 25?,AM=1.5







Features:







1. Select high-efficiency 161*161mm 12 main-gate monocrystalline silicon solar cell, the power generation efficiency is about 1.3 times that of conventional polycrystal, and the overall area is smaller under the same power.



2, using the second generation component packaging process, thinner, lighter, softer, longer life.



3, the surface is made of PET material, treated by special process, more wear-resistant, and at the same time improve the absorption efficiency of sunlight.



4, with high light transmittance, safe and reliable, not afraid of high temperature, no burning or explosion hazard.



5, the junction box IP67 waterproof design, including bypass diode, the circuit uses input overcurrent protection, reverse protection design.



6, the component outlet uses photovoltaic special cable and photovoltaic specialPVconnector, outdoor use is safe, waterproof, high temperature and weather resistance, Pvconnector is easy to use, plug and play.



7. This product is a solar flexible component. It is recommended to be used with controllers and batteries. It is suitable for various scenes such as RV, household, camping, yacht, street light and solar power station.
