US $48.96Original Price : US $76.50 (36%)

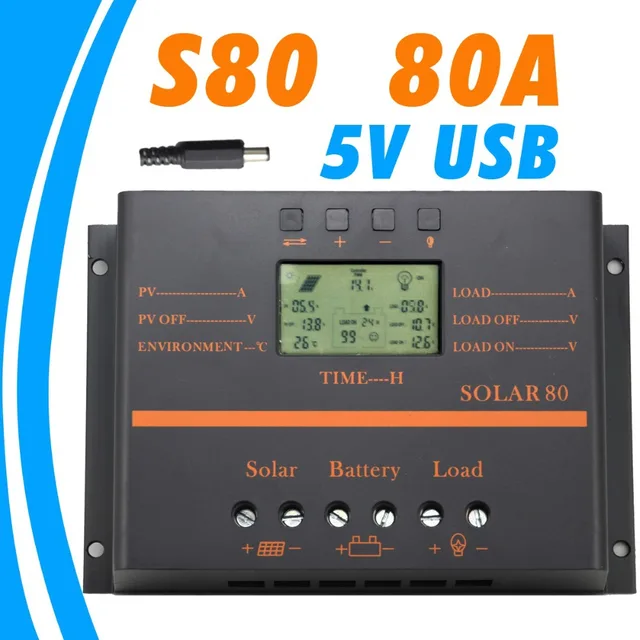

Limited Price 80A Solar Controller 12V 24V LCD 5V USB Charger for Mobile Phone PV Panel Battery Charge Controller with FREE Worldwide Shipping!
4.89
Product description
[825239926]Package Included:
1. 1X80A Solar Controller
2. 1X Users` Manual english
3. 1X Temp. Sensor
60A,80A Solar Panel Charge Controller Regulator 12V/24VCompatible with 1440W(24V) solar panel with dark activated function,
Max current is 60A,80A
Timer Intigrated (Lighting function)
Features:
Solar LCD series a kind of intelligent,
multipurpose solar charge and discharge controller
LCD screen display
Easy operation interface
PWM charging mode
Parameter user can reset,
A key to open and close the load,
A key to restore the factory settings,
Battery reverse discharge protection,
Battery reverse polarity protection
Battery under voltage protection,
Overload, short-circuit protection,
Automatic temperature compensation function,
USB 5V charging (for 500mA) for mobile phone.
DataSheet:
Model
Solar30
Solar60
Solar80
Rated working current
30A
60A
80A
Rated working voltage
12V 24V Auto
Max Solar Panel Input
25V 360W(12V System)
25V 720W(12V System)
25V 960W(12V System)
50V 720W(24V System)
50V 1440W(24V System)
50V 1920W(24V System)
Float charging voltage
13.8V/27.6V(settable)
Low voltage protection
10.7V/21.4V (settable)
Low voltage recovery
12.5V/25.0V(settable)
No-load loss
≤25mA
Loop pressure drop
≤160mV
Charging mode
PWM
Cable
10mm2
20mm2
25mm2
Working temperature
-10°C~60°C
Storage temperature
-30°C~70°C
Humidity requirements
≤90%
Dimension
90mm×188mm×50mm
128mm×188mm×61mm
128mm×188mm×61mm
Mounting hole spacing
60mm×178mm --Φ5
98mm×178 mm--Φ5
98mm×178mm --Φ5
Temperature compensation
-4mV/Cell/°C
Buy Now
Click
Click
Click
CE Certification:
