EPever 60A 45A 30A 20A 10A Solar Charger Controller 12V 24V Auto Backlight LCD Solar Panel Regulato


US $21.00Original Price : US $21.00 (0%)

Cheap Offer EPever 60A 45A 30A 20A 10A Solar Charger Controller 12V 24V Auto Backlight LCD Solar Panel Regulato with FREE Shipping Worldwide!


 4.99



Product description

[33051413107]

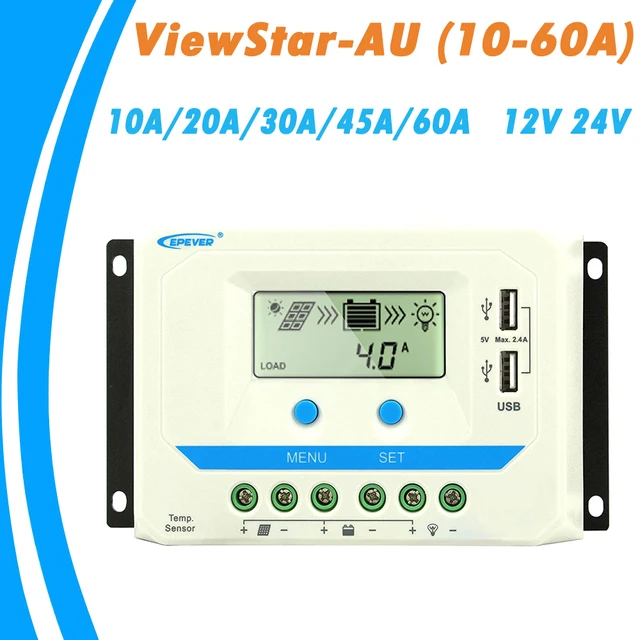

EPever 60A 45A 30A 20A 10A Solar Charger Controller 12V 24V Auto Backlight LCD Solar Panel Regulator Dual USB ViewStar-AU Series
Overview:
The VS-AU charge controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.
Feature:
Adopt high quality components of ST,IR and Infineon, make sure product using lifespan - 3-Stage intelligent PWM charging:Bulk, Boost/Equalize, Float
LCD display design, dynamically displaying device’s operating data and working condition
Multiple load control modes: Manual mode, Light control
Battery temperature compensation function(NOTE: Unplug the RTS, the temperature of battery will be set to a fixed
value 25ºC.)
Extensive Electronic protection
Energy statistics function
Display:

Parameter:









Model









VS1024AU









VS2024AU









VS3024AU









VS4524AU









VS6024AU













Nominal system voltage









12/24VDC Auto













Battery input voltage range









9V~32V













Rated charge current









10A









20A









30A









45A









60A













Rated discharge current









10A









20A









30A









45A









60A













Max. PV open circuit voltage









50V(24V System) 25V(12V System)













Max. PV open circuit power









240W(24V System) 120W(12V System)













Battery type









Sealed(Default) / Gel / Flooded













Equalize Charging Voltage









Sealed:14.6V/ Gel: No/ Flooded:14.8V













Boost Charging Voltage









Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V













Float Charging Voltage









Sealed/Gel/Flooded:13.8V













Low Voltage Reconnect Voltage









Sealed/Gel/Flooded:12.6V













Low Voltage Disconnect Voltage









Sealed/Gel/Flooded:11.1V













Self-consumption









≤9.2mA/12V;≤11.7mA/24V













Temperature compensation









-3mV/°C/2V(25°C)













Charge circuit voltage drop









≤0.29V













Discharge circuit voltage drop









≤0.16V













Working environment temperature









-25°C~+55°C













Relative humidity









≤95%, N.C.













Enclosure









IP30













Grounding









Common Positive













USB output









5VDC/2.4A(Total)













Overall dimension(mm)









142x85x41.5









160x94.9x49.3









181x100.9x59.8









194x118.4x63.8









214x128.7x72.2













Mounting dimension









130x60mm









148x70mm









172x80mm









185x90mm









205x100mm













Mounting hole size









Φ4.5mm









Φ5mm













Terminals









4mm /12AWG









10mm /8AWG









16mm /6AWG









25mm2/4AWG













Note









Please contact the seller if you want to buy many
