US $395.00Original Price : US $493.75 (20%)

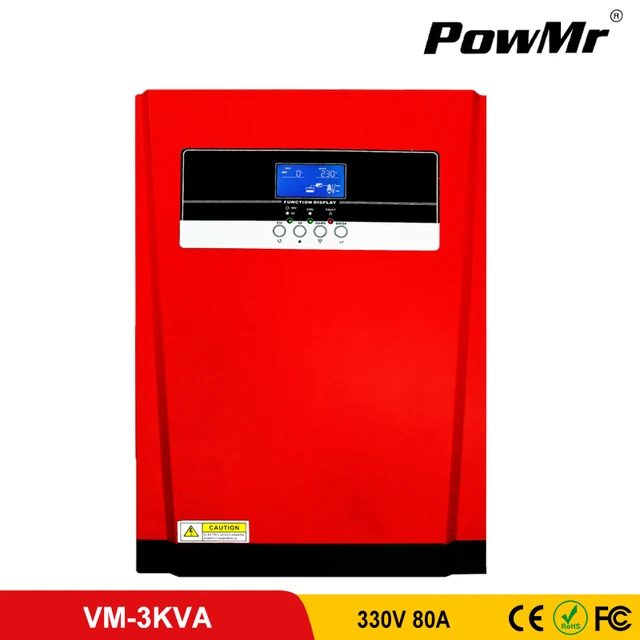

Cheap Offer Solar Hybrid Inverter MPPT 80A Solar Panel AC Charger 3200W Pure Sine Wave Inverter and Regulator f with FREE Shipping Worldwide!
4.71
Related Products :
PowMr 3KVA Solar Inverter 2400W 24V 220V Hybrid Inverter Pure Sine Wave 25A MPPT Solar Charger Controller 30A AC Utility Charing
600W/700W Grid Tie Wireless Micro Solar MPPT Inverter WVC pure sine wave 36-50V DC to AC120V/230VAC With WIFI Communication IP65
5000W MPPT Solar Inverter Pure Sine Wave Hybrid Inverter 80A All in One Solar Panel Charger and AC Charger 220V/230VAC for 500V
MPPT 60A Solar Charge Controller 12V/24V/36/48V Auto LCD Display Max 150V Solar Panel Input High Efficiency Charging eSmart3
Product description
[4000863663182]Battery Voltage:24Vdc(Not necessary,Generate power from PV directly to supply load ,even without battery)
AC Charger Input :230VAC 80A
Solar Charger Input:4000W 500V MPPT
Inverter:3200W Pure Sine Wave 230VAC 50Hz/60Hz
Overviews:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications
Feature:
?Pure sine wave inverter
?Configurable input voltage range for home appliances and personal computers via LCD setting
?Configurable battery charging current based on applications via LCD setting
?Configurable AC/Solar Charger priority via LCD setting
?Compatible to mains voltage or generator power
?Auto restart while AC is recovering
?Overload/ Over temperature/ short circuit protection
?Smart battery charger design for optimized battery performance
?Cold start function
Connections:
Technical Specifications:
Model Name
VM-3KVA
VM-5KVA
Rated Power
3200VA/3200W
5000VA/5000W
Input
Voltage
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC(For Home Appliances)
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt mode)
230VAC plusmn 5%
Surge Power
6400VA
10000VA
Efficiency(Peak)PV to INV
97%
Efficiency(Peak)Battery to INV
94%
Transfer Time
10 ms(For Personal Computers);20 ms(For Home Appliance)
Waveform
Pure sine wave
BATTERY@AC CHARGER
Battery Voltage
24VDC
48VDC
Float Charging Voltage
27VDC
54VDC
Ovrecharge Protection
33VDC
63VDC
Maximum Charge Current
80A
60A
SOLAR CHARGER
Maximum PV Array Power
4000W
5000W
MPPT Range@Operating Voltage
120~450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL
Dimension, D x W x H (mm)
100x300x440
Net Weight
9
10
Communication Interface
USB/RS232/WIFI
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
-10degC to 50degC
Storage Temperature
-15degC to 60degC
